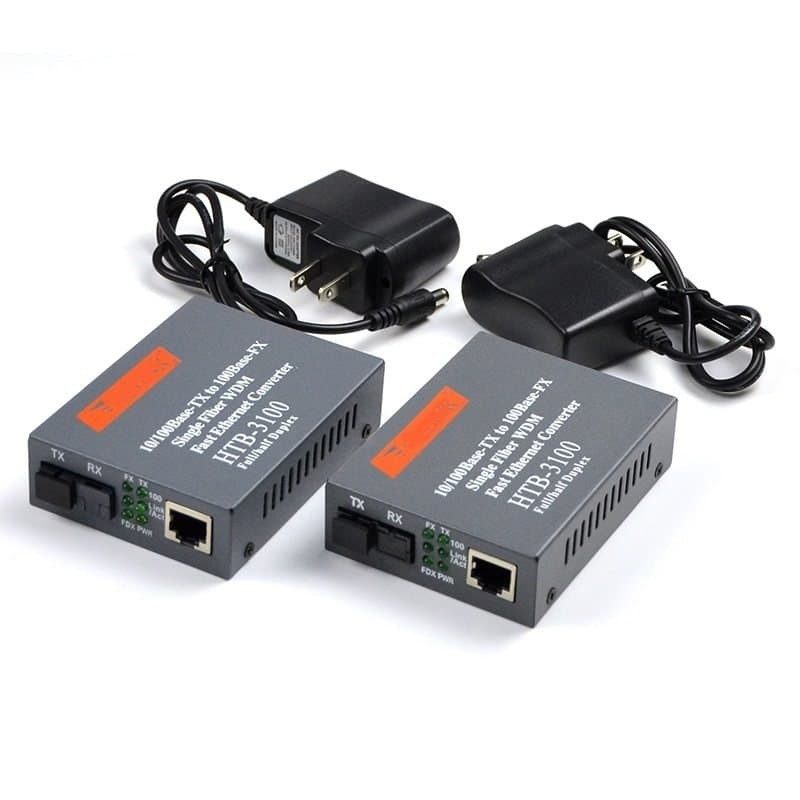

Media Converter FO Single Mode (1 pair)

Deskripsi & spesifikasi

• Media Converter HTB-3100 A-B 25Km Single Mode Transceiver FO (1Pair)
• Lose Pack
• Topologi:
• Gedung1= Switch RJ45 MediaConverterA/B FO max 20km MediaConverterB/A RJ45 Switch = Gedung2
• Overview:
• Bidirectional 10/100M adaptive Ethernet fiber optic transceivers , using the latest U.S. KENDIN chip, high -quality single-fiber bidirectional optical transceiver module ( brand new manufacturers ) , stable performance and excellent quality. For Telecommunications , broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network environment.
• Model: HTB-3100A/B-25KM
• Fiber optic type: Single mode
• Connector type: SC
• Transmit Wave length: 1310/1550nm
• Transmit power: -13~-6dBm
• Receiver sensitivity: -30dBm
• Transmission distance: 20km
• Allowable loss: 17dBm
• Feature:
• 1. Brand-New, High Quality.
• 2. An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic) ;
• 3. Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled ;
• 4. Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards ;
• 5. Has 10M/100M adaptive capacity ;
• 6. Ethernet interface can adaptively direct line / crossover cable connection ;
• 7. Support full / half duplex mode ;
• 8. Support IEEE802.3X duplex flow control and half-duplex backpressure flow control ;
• 9. Supports broadcast storm prevention function ;
• 10. 1916 Byte support large data frame ( optional ) ;
• 11. Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ;
• 12. UTP up to 100 meters ; longest 100 km single-mode fiber
• Packing Contents:
• 1x HTB-3100A
• 1x HTB-3100B
• 2x Power supply
