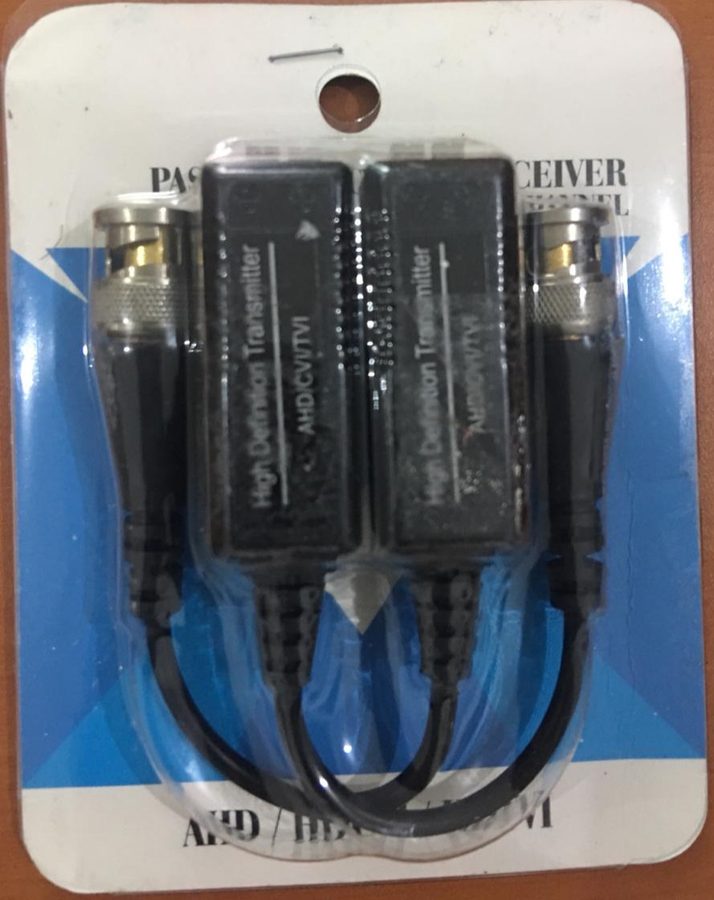

CCTV Video Ball UN Network Tranceiver LLT 213

Deskripsi & spesifikasi

• Model(LLT-)LLT-213
• Spec
• 1CH Passiv Power/Video
• /DATE PVD Video Transceiver
• Video
• Frequency respons: DC-6Mhz Common-mode/Differential-mode Rejection: 15khz ''"6Mhz 60dB typ 60dB typ
• Audio/data YES
• Power NO
• Impedance Coax,male BNC:75UTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100
• Wire type One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per
• 1,000 ft(18 ohms per 100m)
• Surge suppression --------------
• Control NO
• UTP Port RJ45
• Dimensions(mm) 43*20*2.1
• Weigth(g) 35
• Environment Temperature:-10~+50'" Humidity:0~95%
• Package includes:
• 4 Pairs Connectors
